Dab tsi yog Sanitary Valve
Lub valve, raws li nws lub npe qhia, yog ib hom valve uas ua tau raws li cov qauv kev noj qab haus huv thiab kev nyab xeeb rau zaub mov, dej haus, kev kho mob, thiab lwm yam kev siv. Kev ua haujlwm tsis zoo ntawm cov khoom siv huv huv yog qhov tseem ceeb rau kev tswj xyuas qhov huv ntawm cov khoom siv uas ntws los ntawm lawv.
Cov txiaj ntsig ntawm Sanitary Valve
Crevice dawb
Cov ntawv thov kev huv huv hauv kev lag luam xws li khoom noj thiab kev kho mob, hais txog qhov tseeb tias cov no yuav tsum tsis txhob muaj kev sib kis. Thiab yog hais tias muaj ib qho crevice nyob rau hauv lub li qub, muaj feem ntau ntawm qhov qub. Yog li cov neeg tsim khoom ntawm cov li qub kom ntseeg tau tias tsis muaj qhov chaw seem rau qhov crevice, kom tsis txhob muaj kev sib kis. Yog tsis muaj qhov crevice lawv yuav tsis muaj teeb meem cuam tshuam nrog kev tu cev ntawm cov nroj tsuag tshwj xeeb.
Yooj yim ntxuav
Kev lag luam zaub mov thiab khoom noj siv mis yog cov, uas kev nyiam huv thiab kev noj qab haus huv yog qhov tseem ceeb tshaj plaws. Yuav muaj kev ua haujlwm ntau heev hauv kev lag luam, xws li kev tswj xyuas cov khoom ntws, kom ntseeg tau tias qhov zoo ntawm cov khoom, tswj qhov kub thiab txias. Yog li nws yog ib qho tseem ceeb uas kev ua haujlwm tu tsis yog cumbersome. Cov sanitary li qub yog yooj yim los ntxuav vim lawv tsis stains yooj yim. Yog li siv tau yooj yim.
Nto ntawm cov li qub
Yog hais tias qhov saum npoo ntawm lub li qub yog tus du thiab polished, nws tsis ua rau cov txheej txheem ntawm xeb lossis corrosion. Tus nqi ntawm cov nqi uas mus nkim hauv kev hloov cov li qub uas xeb thiab degrade cov kav dej yog ntau dhau. Txhawm rau zam cov no muaj cov khoom siv huv huv, uas yog ua los ntawm polished stainless hlau.
-
Din Npauj Npaim Valve
Khoom Lub Npe: Stainless Steel Food Grade Sanitary Hygienic Npauj Npaim Valve. Valve lub cev khoom: Ntxiv rau Kev Nug -
3A Npauj Npaim Valve
Tus yam ntxwv ntawm kev huv npauj npaim valve yog qhov saum npoo ci yog li nws tsis lo rau plua Ntxiv rau Kev Nug -
Sms Npauj Npaim Valve
Max Ua Haujlwm Siab: 10Bar (DN25 rau DN100), 8 bar (DN125 txog DN150), 5 bar (DN200 txog DN300). Ntxiv rau Kev Nug -
Sanitary Npauj Npaim Valve
Qhov qhib thiab kaw qhov ntau yog 0~ 90 degrees, uas tuaj yeem kho tau ntawm 15 degrees ib ntus, Ntxiv rau Kev Nug -
Npauj Npaim Valve nrog Gripper kov
Khoom Lub Npe: Stainless Steel Food Grade Sanitary Hygienic Npauj Npaim Valve. Valve lub cev khoom: Ntxiv rau Kev Nug -
Kuaj Valve Clamp
Khoom npe: SS304 316L Stainless Hlau Hygienic Tsis Rov Qab Valve Sanitary Check Valve. Khoom siv: Ntxiv rau Kev Nug -
Sms Check Valve
Gasket / Foob: EPDM, SILICONE, VITON. Max siab: 10bar. Ua haujlwm kub: -10 degree rau ntxiv rau 120 Ntxiv rau Kev Nug -

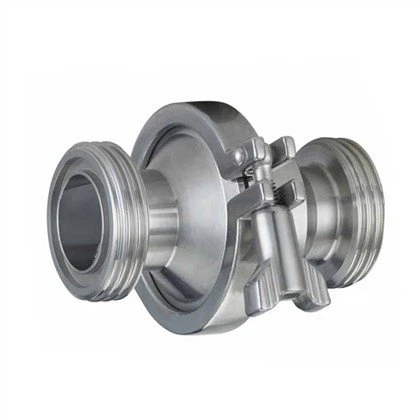

3A Check Valve
Txoj Kev Xa Khoom: Los ntawm kev nthuav qhia, los ntawm huab cua, lossis los ntawm hiav txwv, raws Ntxiv rau Kev Nug -
Sanitary Clamp Pob Valve
Khoom npe: SS304 316L Stainless Hlau Hygienic Pob Valve Sanitary Ball Valve. Khoom siv: 1.4404 / Ntxiv rau Kev Nug -
Sanitary Pob Valve
Max siab: 10bar. Ua haujlwm kub: -10 degree rau ntxiv rau 120 degree. Txuj: DIN / SMS / ISO / IDF / Ntxiv rau Kev Nug -
Sanitary Weld Pob Valve
Khoom npe: SS304 316L Stainless Hlau Hygienic Pob Valve Sanitary Ball Valve. Khoom siv: Stainless Ntxiv rau Kev Nug -
Stainless hlau Tri Clamp Pob Valve
Ua haujlwm: Phau ntawv, Pneumatic, Hluav taws xob. Daim ntawv thov Scope: Dairy, zaub mov, npias, Ntxiv rau Kev Nug
Vim li cas thiaj xaiv peb
Cov qauv zoo
Peb cov khoom yog tsim los rau cov qauv zoo, kom ntseeg tau tias lawv ruaj khov thiab kav ntev. Peb tsuas yog siv cov ntaub ntawv zoo tshaj plaws thiab cov txheej txheem tsim khoom tshiab los tsim peb cov khoom.
Cov nqi sib tw
Peb muab peb cov khoom flange ntawm tus nqi sib tw, kom ntseeg tau tias peb cov neeg siv khoom tau txais txiaj ntsig zoo tshaj plaws rau lawv cov nyiaj.
Kev txawj ntse
Peb muaj ib pab neeg ntawm cov kws tshaj lij uas muaj ntau xyoo kev paub hauv kev lag luam flange.
Kev pabcuam neeg siv khoom
Peb txaus siab rau peb tus kheej ntawm kev muab kev pabcuam zoo rau cov neeg siv khoom thiab ua kom peb cov neeg siv khoom txaus siab rau lawv cov kev yuav khoom. Peb ib txwm muaj los teb cov lus nug lossis kev txhawj xeeb uas peb cov neeg siv khoom muaj.
Qhov txawv ntawm Sanitary li qub thiab lwm yam muaj li qub
Khoom siv
Cov khoom sib txuas ntawm cov khoom siv huv huv thiab cov txheej txheem ua tiav feem ntau yog ua los ntawm 304 lossis 316 stainless hlau. Cov qib ntawm stainless hlau no yog cov khoom tsis muaj teeb meem, tsis muaj tshuaj lom nrog lub ntsej muag huv, du uas tiv taus degradation thiab corrosion.
Cov ntsaws ruaj ruaj
Sanitary li qub xav tau O-rings, ntsaws ruaj ruaj, thiab cov rooj zaum yog tsim los ntawm softer, inert, abrasion-resistant cov ntaub ntawv uas ua raws li 3A thiab / los yog USP qauv.
Cov qauv
Cov qauv rau kev huv huv li qub tshaj li qhov yuav tsum tau muaj ntawm lwm cov kev lag luam li qub nyob rau hauv cov nqe lus ntawm lawv lub peev xwm los mus tiv taus kev dismantling thiab installation, nrog rau qhov tsim nyog smoothness ntawm lawv sab hauv nto tiav.
Valve khiav
Sanitary li qub suav nrog cov neeg khiav dej num smoother kom lawv tsim nyog siv rau hauv kev lag luam lom neeg fermentation.
Sanitary Valve ntawm Tsim nta
Kev xaiv khoom
Kev xaiv cov khoom siv yog qhov tseem ceeb hauv kev huv huv kom ntseeg tau tias muaj kev tiv thaiv corrosion, yooj yim ntawm kev ntxuav siv SIP thiab CIP cov txheej txheem, kev sib raug zoo nrog cov khoom uas lawv tiv tauj, thiab kub-resistant. Cov ntaub ntawv yuav tsum tiv taus qhov kub thiab txias hauv txoj kev ua kom tsis muaj menyuam xws li autoclaving lossis chav ntxuav. Xaiv cov ntaub ntawv zoo, xws li stainless hlau, alloys, lossis FDA-polymers pom zoo, pab tswj cov khoom siv tu cev thiab tiv thaiv kev phom sij.
Nto tiav
Cov chaw sab hauv ntawm cov khoom siv huv huv feem ntau yog polished mus rau qib siab ntawm smoothness los tiv thaiv cov adhesion ntawm cov khoom thiab cov kab mob. Lawv muaj cov kev cai tshwj xeeb ntawm qhov chaw ua kom tiav los xyuas kom muaj kev nyiam huv. Cov qauv no, xws li Ra (Roughness Nruab Nrab) tus nqi, qhia txog qib ntawm smoothness thiab huv si yuav tsum tau rau lub valve nto. Tus nqi qis dua Ra qhia tau hais tias lub ntsej muag du, yooj yim los ntxuav, thiab tsis tshua muaj kab mob adhesion.
Sealing: Sanitary qib li qub siv cov ntsaws ruaj ruaj zoo los tiv thaiv kev kis kab mob. Cov ntsaws ruaj ruaj no feem ntau yog tsim los ntawm silicone, EPDM, lossis Viton, uas tiv taus kub thiab corrosion.
Electropolishing
Electropolishing yuav immersing lub valve nyob rau hauv ib tug da dej electrolyte thiab siv ib tug hluav taws xob tam sim no kom tshem tawm cov imperfections nto thiab txhim khu corrosion kuj. Electropolished nto yog smoother, ntau contamination-resistant, thiab yooj yim los ntxuav.
Tri-clamp kev sib txuas
Cov qib huv huv feem ntau siv cov kev sib txuas tri-clamp, tseem hu ua tri-clover lossis tri-clover fittings. Cov kev sib txuas no muab kev ruaj ntseg thiab huv si ntawm ob lub ntsiab lus, xws li lub valve thiab cov yeeb nkab lossis lub valve thiab lub tank. Tri-clamp fittings yog ib qho yooj yim los sib sau ua ke, disassemble, thiab huv si, ua rau lawv nrov hauv kev lag luam uas yuav tsum tau ua kom tsis muaj menyuam.
Cov txheej txheem vuam
Cov qib huv huv feem ntau siv cov txheej txheem vuam tshwj xeeb, xws li orbital welding lossis huv TIG (Tungsten Inert Gas) vuam. Cov txheej txheem no muab cov welds meej thiab zoo ib yam yam tsis tau qhia cov kab mob sib kis, ua kom muaj kev ncaj ncees thiab kev nyiam huv ntawm lub valve.
Sanitary Valve ntawm kev siv
Kev kho dej thiab purification
Sanitary li qub yog siv rau hauv cov chaw kho dej los tswj cov dej ntws, ua kom cov dej huv huv thiab nyab xeeb rau cov zej zog.
Khoom noj khoom haus thiab dej haus
Hauv kev ua zaub mov thiab dej haus, cov dej huv huv yog qhov tseem ceeb los tswj kev nyiam huv thiab tiv thaiv kev sib kis thaum tsim cov dej haus, khoom noj siv mis, kua ntses, thiab lwm yam khoom siv.
Pharmaceutical thiab biotechnology
Sanitary li qub ua lub luag haujlwm tseem ceeb hauv cov txheej txheem tshuaj thiab biotechnology, qhov uas tswj cov purity thiab sterility ntawm cov kua yog qhov tseem ceeb rau kev tsim tshuaj thiab kev tshawb fawb.
Tshuaj pleev ib ce thiab khoom tu tus kheej
Kev lag luam tshuaj pleev ib ce thiab kev saib xyuas tus kheej tso siab rau cov khoom siv huv huv kom tswj cov khoom xyaw thaum lub sijhawm tsim cov tshuaj pleev, cream, thiab lwm yam khoom tu tus kheej.
Tshuaj thiab petrochemical
Sanitary li qub yog siv nyob rau hauv cov tshuaj thiab petrochemical cov txheej txheem, qhov twg corrosive los yog dej txaus ntshai yuav tsum tau tswj nrog siab tshaj plaws kev nyab xeeb thiab huv si.
Hom Sanitary Valves thiab lawv daim ntawv thov
Npauj npaim li qub
Npauj npaim li qub muaj npe tom qab lawv cov tsos, uas zoo ib yam li npauj npaim. Cov li qub no tuaj yeem tswj tau qhov ntws ntawm koj cov khoom los ntawm kev tig ntawm axis nyob rau hauv txoj kab cylindrical.
Pob li qub
Pob li qub kuj yog lub quarter-tig li qub li npauj npaim li qub. Tsis tas li ntawd, muaj 2- txoj kev pob li qub thiab 3- txoj kev pob li qub.2- txoj kev pob li qub muaj ntau hom series, suav nrog 21 series, 26 series, 36 series, thiab ib V series. Qhov sib txawv ntawm txhua series los ntawm hom kev sib txuas, hom drilling, thiab kev ua haujlwm.
Kuaj li qub
Kuaj li qub tso cai rau cov kua dej ntws los ntawm ib qho kev taw qhia. Zoo li pob li qub, lawv ua haujlwm zoo tiv thaiv kev kub siab. Lawv feem ntau yog siv rau hauv cov kav dej thiab cov twj tso kua mis.Muaj ntau hom kev kos li qub, suav nrog viav vias kos li qub thiab piston kos li qub. Lub viav vias kos li qub siv lub qhov rooj hinged los yog lub caij nplooj ntoos hlav-actuated wafers kaw tawm tsam cov chaw nres nkoj thaum cov dej kaw.
Diaphragm li qub
Diaphragm li qub muaj qhov tshwj xeeb kaw, thiab lub diaphragm ntawm lub valve yog ua los ntawm cov khoom muag muag. Cov khoom sib cais lub valve lub cev ntawm lub kaus mom kab noj hniav. Lawv yog cov valve dav dav thiab tso cai rau cov kua dej ntws hauv ob qho tib si.
Yam Tseem Ceeb Uas Muaj Kev Ruaj Ntseg Valve Lifespan
01/
Kev ua haujlwm
Txawm hais tias qee qhov kev huv huv valve tau siv los ntawm tes, ntau tus ua haujlwm ntawm lub tshuab hluav taws xob tsis siv neeg. Nyob ntawm koj lub cev lub voj voog ceev, koj muaj koj xaiv ntawm pneumatic (air-powered), hluav taws xob (motorized) lossis hydraulic (kua-powered) actuation. Los ntawm kev xaiv lub zog tsim nyog rau koj daim ntawv thov, koj tuaj yeem txo cov nqi kho, ua kom lub sijhawm ua haujlwm thiab ua kom muaj kev nyab xeeb.
02/
Tsim
Sanitary valve tuaj nyob rau hauv ib-, ob- thiab peb-daim qauv tsim, thawj ob uas tsis tso cai rau kev saib xyuas thiab yuav tsum tau hloov thaum cov khoom ua tsis tiav. Sanitary valve, txawm li cas los xij, yog tsim los kom cov rooj zaum thiab cov ntsaws ruaj ruaj tuaj yeem raug tshem tawm thiab hloov tau sai thiab yooj yim yam tsis tau tshem tag nrho lub valve ntawm lub cev. Muab lub valve yog ua los ntawm cov khoom siv ruaj khov, lub peev xwm los hloov cov khoom txhais tau hais tias peb-thooj pob li qub tuaj yeem ua tiav lawv cov khoom ib- thiab ob-thooj.
03/
Kev pabcuam
Cov ntsaws ruaj ruaj feem ntau yog thawj feem ua tsis tiav hauv lub pob valve, vim tias lawv tau ua los ntawm cov khoom siv softer dua li lub cev valve. Thaum ib-thooj thiab ob-thooj pob li qub yuav tsum tau hloov thaum lawv cov ntsaws ruaj ruaj tas sij hawm, peb-thooj pob li qub tso cai rau kev hloov cov ntsaws ruaj ruaj tsis tau tshem tawm tag nrho.
04/
Kub thiab siab ntsuas
Sanitary valve siv nyob rau hauv high-pressure los yog high-lub voj voog chaw yuav tsum tau muab kev pab los yog hloov ntau zaus tshaj li cov nyob rau hauv qis-siab daim ntawv thov. Qhov ntsuas kub / siab ntsuas yuav cuam tshuam rau cov khoom ntawm koj xaiv pob li qub. Nco ntsoov tias qhov ze dua qhov kev tshaj tawm qhov ntsuas kub / qhov siab yog rau lub pob valve qhov ntsuas, qhov ntau zaus lub valve yuav tsum tau hloov.
05/
Media
Sanitary valve feem ntau yog npaj rau kev qhib / tawm tswj cov kua thiab cov pa uas tsis muaj cov khoom siv. Txhua qhov hais hauv xov xwm tuaj yeem ua rau lub valve seals, ua rau kev kho, valve tsis ua haujlwm lossis actuator tsis ua haujlwm. Conversely, lubrication medias xws li roj tuaj yeem txo qhov hnav thiab ua kom lub neej ntawm lub valve txuas ntxiv.
06/
Valve cov ntaub ntawv
Media yog qhov kev txiav txim loj ntawm cov khoom siv rau lub cev huv huv thiab cov khoom siv. Sanitary valve tuaj yeem ua los ntawm stainless hlau, tooj dag, tooj liab, lossis yas (PVC). Thaum PVC muaj qhov yooj yim thiab txuag nqi, cov hlau huv huv valve muaj kev ruaj khov thiab muaj peev xwm tiv taus qhov kub thiab txias. Zuag qhia tag nrho, hlau huv valve muaj lub neej ntev dua li cov uas ua nrog PVC lossis lwm yam khoom siv hluavtaws.
Kev kho ntawm Sanitary Valves
Ua kom huv si
Ib txoj hauv kev yooj yim tshaj plaws los txuas lub neej ntawm koj lub valve yog ntxuav lawv. Txhua tus neeg yuav muaj lub sijhawm tu sib txawv tab sis nws yog qhov zoo tshaj los ntxuav koj li qub tsawg kawg ib xyoos ib zaug. Yog tias koj ib puag ncig qias neeg lossis plua plav, koj yuav tsum ntxuav lawv ntau zaus. Qhov yooj yim tshaj plaws los ua qhov no yog siv cov phuam da dej los yog txhuam txhuam los ntxuav lub valve casing. Khaws nws kom huv si yuav tiv thaiv kev tsim ntawm lub qia valve thiab lwm yam txav mus, ua kom lub neej ntawm koj lub valve.
Kev soj ntsuam niaj hnub
Koj lub valve yuav tsum tau kuaj xyuas thiab tshuaj xyuas kom zoo ib yam. Yog tias koj muaj li qub uas muaj kev ntxhov siab (kub lossis siab), koj yuav tsum saib xyuas cov li qub no ntau dua li lwm tus. Nias lub valve mus rau nws qhov kev txwv yuav ua rau nws ua tsis tau sai dua.Ua kom lub kaw lus kaw kom zoo. Xyuas kom tseeb tias bolts, txiv ntseej thiab lwm yam khoom siv nruj. Yog tias ua tau, qhib thiab kaw cov valve kom paub tseeb tias lawv tsis raug ntes. Yog tias koj pom muaj qhov xau, lawv yuav tsum tau hais tam sim ntawd. Cov dej ntws tawm yog qhov ua rau muaj kev khiav tawm ntawm cov pa tawm.
Teem sijhawm kaw kev saib xyuas
Thaum lub sij hawm, mineralization, xeb thiab corrosion yuav cuam tshuam rau qhov chaw hauv koj li qub. Kev kaw txhua xyoo yog lub sijhawm zoo tshaj plaws los hla koj li qub. Muab lawv sib cais, ntxuav cov sab hauv, thiab hloov cov khoom hnav lossis tawg. Ntxiv nrog rau cov khoom siv hlau, muaj ntau yam roj hmab thiab cov khoom yas uas yuav tsum tau hloov. Yog tias koj pom qhov chaw uas nkig los yog rotting, hloov lawv raws li qhov tsim nyog.
Peb lub Hoobkas
Peb cov founders tau nyob rau hauv kev lag luam stainless hlau rau ntau tshaj 30 xyoo thiab tau exporting stainless hlau khoom rau ntau tshaj 15 xyoo. Peb tsuas yog xa tawm mus rau ntau tshaj 30 lub teb chaws hauv North America, South America, Europe, Asia thiab lwm lub xeev. Nrog rau kev mob siab rau thiab kev siv zog, peb tau dhau los ua ib qho ntawm cov tuam txhab ua lag luam ntawm cov fittings thiab flanges hauv Suav teb.
Nug cov lus nug
Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb sov siab txais tos koj mus yuav luv nqi sanitary valve los ntawm peb lub hoobkas. Tag nrho peb cov khoom yog nrog cov khoom zoo thiab cov nqi sib tw. Tiv tauj peb rau kev hais lus.
